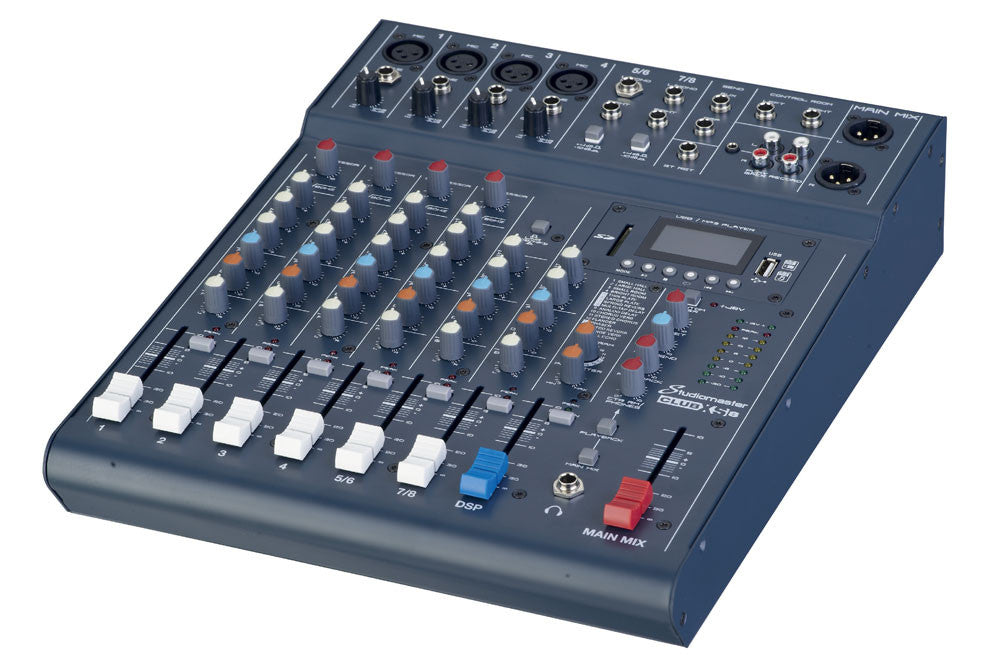

Studiomaster Club XS 8 - 8 input mixer with USB/SD Card Media player/recorder & bluetooth playback

Studiomaster

Studiomaster Club XS 8 - 8 input mixer with USB/SD Card Media player/recorder & bluetooth playback

£189.00

New to Studiomaster are our CLUB XS range of compact, and portable mixing consoles. Offering all the features and specifications required from mixing consoles at this level, at a great price point. With features such as 3 band EQ, built-in channel compression, DSP effects and a hugely versatile MP3/USB/SD card playback and recording system.

Available in either 8 input or 10 input models. The 8 input with 4 mic channels, the 10 with 6 mic channels. Both feature 2 stereo input channels.
Input channels, are fully featured with 3 band EQ, 2 Auxiliaries, balanced mic/line connectors, compressor control and a useful channel MUTE switch. Stereo channels differ only with 2 band EQ and no compressor.
Main outputs are balanced XLR, with additional jack outputs available for auxiliaries and control room, and RCA phono record/playback facilities.

The USB/SD card facility for stereo recording / playback  make the CLUB XS ideal for project home recording or giving the ability to supply interval / backing music to your live performance. To add further practicality to the unit, there is a built in MP3 player and Bluetooth playback facility to give you every opportunity to make your live performance as quick and easy to set-up as possible.

Also included on both CLUB XS models is a high quality 16 programme DSP effects unit.

In addition to this, the CLUB XS models feature +48V phantom power on all mic channels, high quality 60mm smooth faders, and a robust quiet internal switchmode power supply.

Specifications:

Inputs 8
Mic Input channels 4
Stereo Input channels 2
Gain Min - Max
Mic -16dB - -60dB
Line +10dB - -34dB
EIN -100dB
Frequency response
Mic Channel 10Hz - 20kHz+1/-3dB
THD Mic Channel <=0.1%
Signal to noise ratio 80dB
Output Levels Balanced +26dB Max
Output Levels Unbalanced +20dB Max
Channel EQ
Hi 12kHz
Mid 2.5kHz
Lo 45Hz
Lo Cut 80Hz
MP3/USB/SD Audio playback 2 channel playback
USB/SD Audio recording 2 channel recording from mix output
Bluetooth Playback 2 channel playback
DSP Effects 16 presets with adjustable parameter
Power requirements 100-240V ~ 50/60Hz
Dimensions (wxhxd) 283x359x70mm
